GDEmu clone issues

Post#1 » Mon Dec 10, 2018 12:33 am

If you have a clone Gdemu, you likely have a faulty or incorrect crystal on your g1 bus that needs to be replaced. Reference the following tweet for fix. This is partly why I am against chinese knock offs.

https://mobile.twitter.com/citrus3000ps ... 7803078658

Thanks to Citrispsi3000 for finding this issue.

https://www.mouser.com/ProductDetail/?q ... Ik0w%3d%3d - Crystal Replacement
Last edited by Xiden on Wed Dec 12, 2018 11:51 am, edited 1 time in total.

XVO
rebel
Posts: 23

Re: GDEmu clone issues

Post#2 » Mon Dec 10, 2018 3:44 pm

So far no issues with my clone gdemu, but when it happens I now know what to do. Thank you.

2koolpa
photon blast
Posts: 107

Re: GDEmu clone issues

Post#3 » Mon Dec 10, 2018 4:51 pm

No issues with my clone either. Between that and vga, best thing you can get your Dreamcast.

User avatar
Xiden
Gold Lion
Posts: 1612

Re: GDEmu clone issues

Post#4 » Mon Dec 10, 2018 6:10 pm

It may only be with some boards but figured I'd share anyways just in case :)

mrneo240
Outtrigger
Posts: 458

Re: GDEmu clone issues

Post#5 » Wed Dec 12, 2018 11:20 am

All set over here

User avatar
Xiden
Gold Lion
Posts: 1612

Re: GDEmu clone issues

Post#6 » Wed Dec 12, 2018 11:43 am

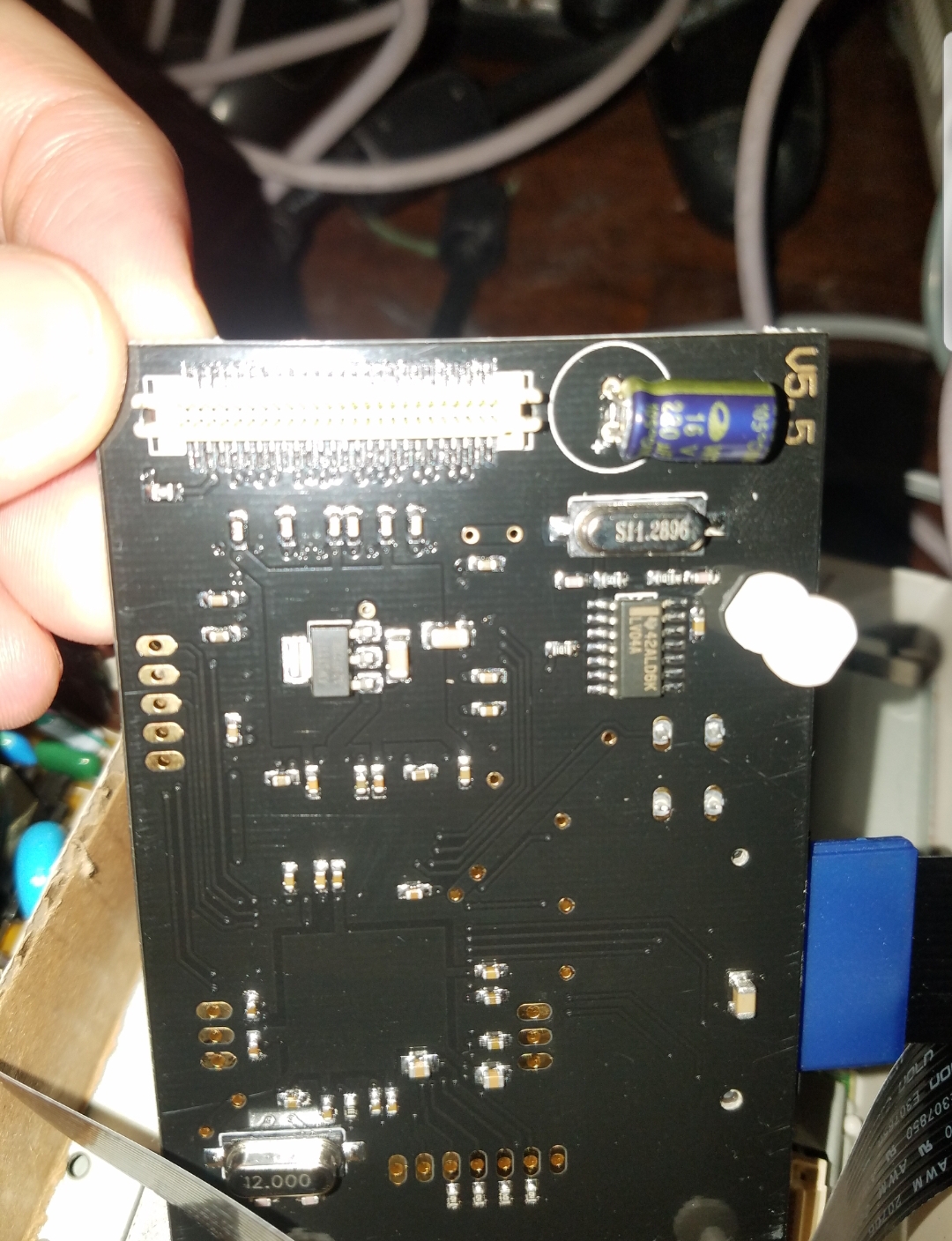

mrneo240 wrote:Screenshot_20181212-111924_Gallery.jpg


NIce!

Btw updated my Original post to include a link to replacement Crystals

User avatar
Anthony817
Shark Patrol
Posts: 2785

Re: GDEmu clone issues

Post#7 » Fri Dec 14, 2018 1:49 am

Thanks for the heads up. Checked mine I got in August and all is well.
