Adapter for MAPLE (Release)

[K470r]

Thanks Megavolt85 for the firmware. I am waiting for the arrival of the other components to put it to the test.

Today the STM and the 25PE16 have arrived.

[xzer0PL]

Hey. I soldered everything. In general is a great adapter. I have only two problems with it. Adapter don't recognise memory chip. I soldered everything good. In memory card manager there is no VMU. Mice, psx, ps2 works great. I have two unofficial saturn controllers. One works, other not.

[megavolt85]

Hey. I soldered everything. In general is a great adapter. I have only two problems with it. Adapter don't recognise memory chip. I soldered everything good. In memory card manager there is no VMU. Mice, psx, ps2 works great. I have two unofficial saturn controllers. One works, other not.

test this firmware

SMPMK2DC.7z

(12.55 KiB) Downloaded 601 times

[xzer0PL]

Thanks for fast answer! I solved vmu problem in other way. Speud's VMU Tool was seeing all memory cards. I formatted them without problem. Now only salturn controller is a problem. I noticed now, during testing that only D-pad works on both of saturn unofficial pads (one is retrobit controller). I will check connections.

EDIT

VMU problem not solved. All vmu's are visible when I'm using mice in VMU TOOL only. With ps2 pad not working. Tomorrow I will flash new firmware


EDIT2

OK with new firmware VMU works great. Now I must check saturn connector. Probably it has some loose.

[megavolt85]

I noticed now, during testing that only D-pad works on both of saturn unofficial pads (one is retrobit controller)

saturn use 5V power, all tested controllers fine work with 3.3v, maybe your controller requery full power
connect power pin to 5V

[ferreira3500]

Hi,is there more pics of the adapter?i mean is anyone already do one and tested it?can i use ps2 controller on dreamcast and in the meantime use this adaptor to use a dreamcast controller on pc?cheers

[The-Amazing-Mr_V]

This is a pretty awesome project!

[megavolt85]

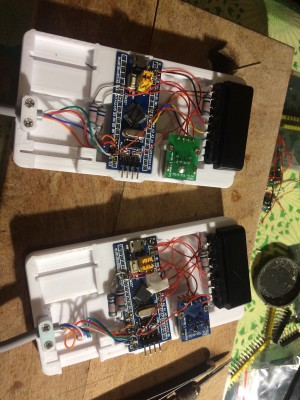

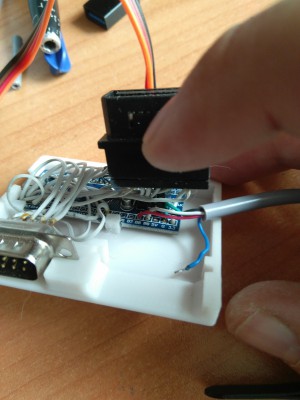

Hi,is there more pics of the adapter?

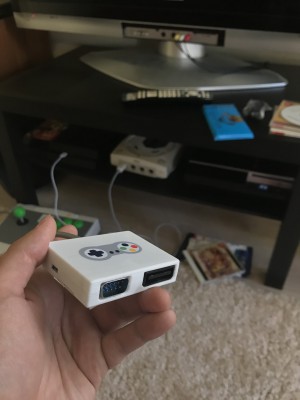

yes, some users share their photos with me, there are even people in VK who make cases and sell these adapters

can i use ps2 controller on dreamcast and in the meantime use this adaptor to use a dreamcast controller on pc?cheers

this adapter for connect any controllers to Dreamcast (not to PC)

[ferreira3500]

Thanks for the reply,how hard it will be adding the funcionalitty or the ability to use dreamcast controllers on pc?

[megavolt85]

how hard it will be adding the funcionalitty or the ability to use dreamcast controllers on pc?

it is very easy to connect like a regular D-INPUT controller
making VMU read / write very easy too
but adding support for vibration will be more difficult
