[request] Dreamcast GD-ROM pattern layout documention

Technical help for Dreamcast console, accessories and games only. Ask questions and find answers here. For Online help see the Online Forum
User avatar
MoeFoh
1300
Posts: 1362

[request] Dreamcast GD-ROM pattern layout documention

Post by MoeFoh »

Does anybody have the doc from SEGA that talks about the three different patterns a GD-ROM can have on the high-density area? Pattern I, Pattern II and Pattern III.

I know I've seen it before, but can't seem to find it now.

I have this already, it's version 1.32. I'm looking a later version like 2.13.

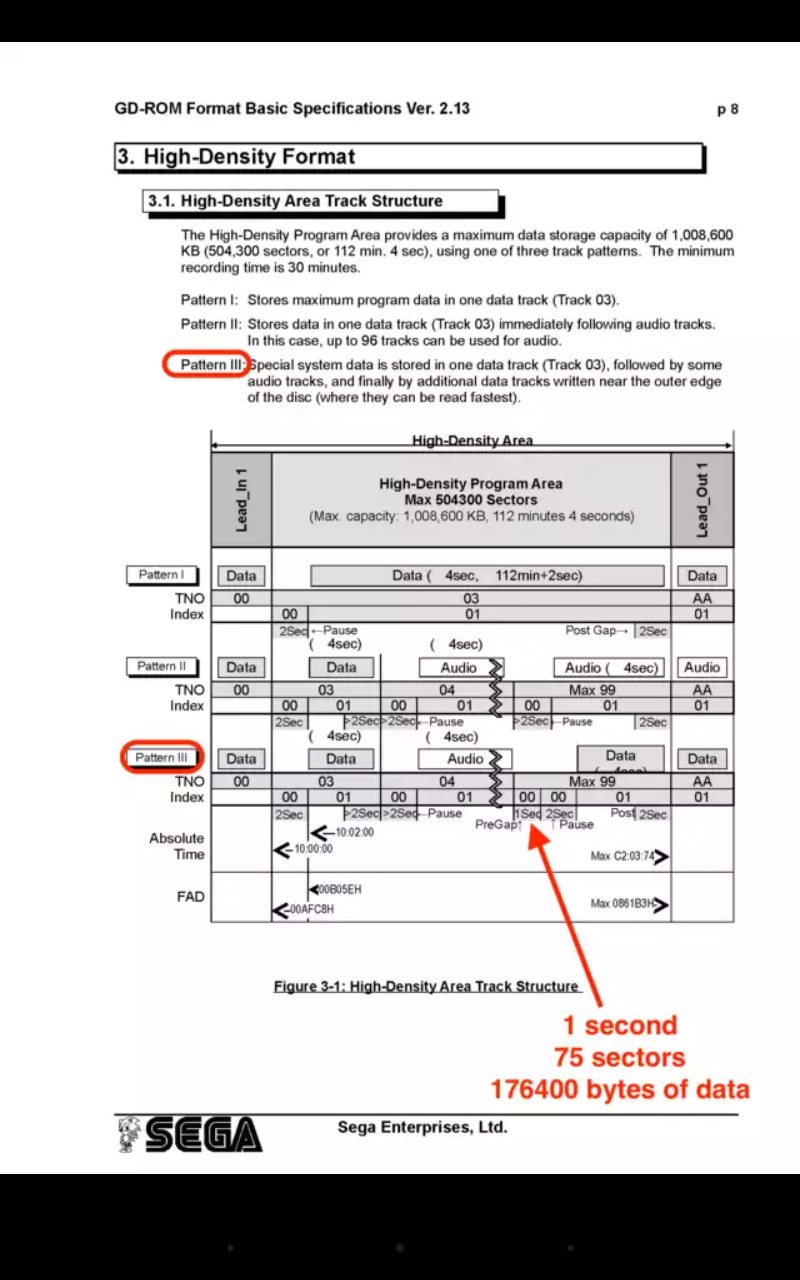

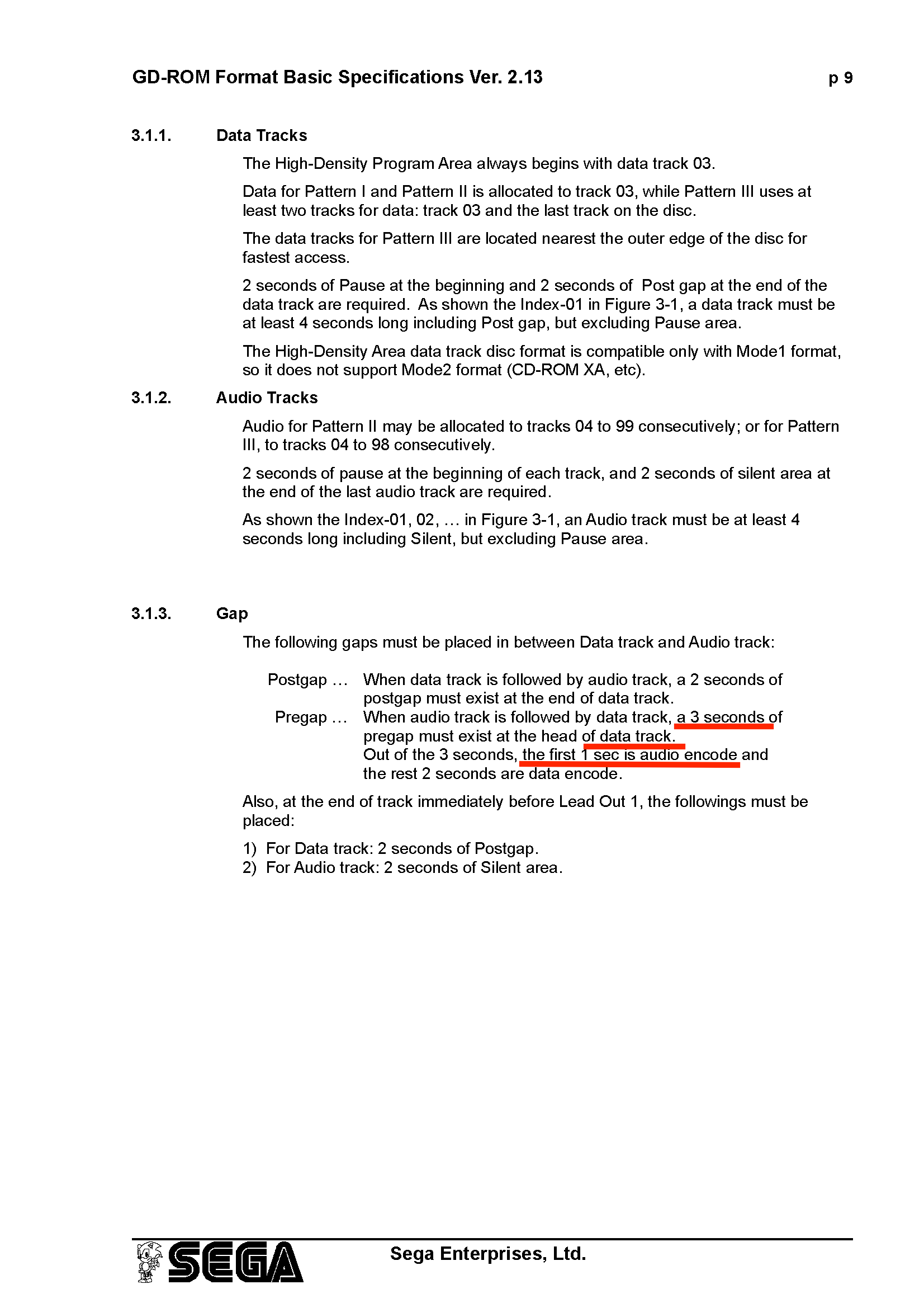

OK, found my screenshots.
Attachments
Dreamcast GD-ROM Specifications from SEGA.zip
Manual
(458.38 KiB) Downloaded 210 times
