USB4MAPLE adapter

Place for discussing homebrew games, development, new releases and emulation.
shadow
Posts: 7
Dreamcast Games you play Online: Alien Front Online, ClassiCube, Quake III Arena, Phantasy Star Online.

Extensions get mixed up.

Post by Elixir Alex »

I've noticed this issue where sometimes my USB4Maple saves virtual VMU's with slightly garbled extensions and it has me kind of concerned.
I made the USB4Maple myself and I wouldn't be surprised if it's the adapter.
I normally keep it on the D port just for saving with a ps4 controller attached to it with a splitter. I switched to a different usb thumb drive but it still causes issues. The current leading theories is that it's either the port being iffy or the usb4maple adapter. I was wondering if anyone else had any issues like this.

shadow
Posts: 7
Dreamcast Games you play Online: None at the moment :)

Re: Extensions get mixed up.

Post by Flatfire »

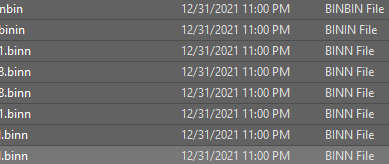

Elixir Alex wrote: Sun Mar 16, 2025 4:21 am I've noticed this issue where sometimes my USB4Maple saves virtual VMU's with slightly garbled extensions and it has me kind of concerned.bins.png

I made the USB4Maple myself and I wouldn't be surprised if it's the adapter.

I normally keep it on the D port just for saving with a ps4 controller attached to it with a splitter. I switched to a different usb thumb drive but it still causes issues. The current leading theories is that it's either the port being iffy or the usb4maple adapter. I was wondering if anyone else had any issues like this.
Interestingly, I wonder if this is what was happening after I edited my VMU .bin

I assumed it was a lack of GDEmu that was making things weird, but you have one from the look of it and are facing a similar problem.

noob
Posts: 3

Re: USB4MAPLE adapter

Post by Un_frog »

Can we get a dedicated arcade stick layout? I want to bring this to my fighting game locals but having L only on the L1 and L2 buttons doesn't work well for fighting games. How can I map L to R1?

noob
Posts: 2

Re: USB4MAPLE adapter

Post by BeeWildered »

Un_frog wrote: Mon Mar 17, 2025 9:57 am Can we get a dedicated arcade stick layout? I want to bring this to my fighting game locals but having L only on the L1 and L2 buttons doesn't work well for fighting games. How can I map L to R1?
I think you might be looking for this viewtopic.php?t=13058

or this https://github.com/mackieks/MaplePad?tab=readme-ov-file

noob
Posts: 3

Re: USB4MAPLE adapter

Post by Un_frog »

I can't belive I missed that. Thank you.

noob
Posts: 3

Re: USB4MAPLE adapter

Post by Un_frog »

No dice. Only thing it seemed to change was disabeling r1 and r2 on the gdmenu

Edit: I should clarify. I added the arcade.bin file to the dongle from the first link. installing the maplepad firmware caused no inputs to be read whatsoever. I'm using a gp2040ce controller in direct input mode.

noob
Posts: 4

Re: USB4MAPLE adapter

Post by Dislecsick »

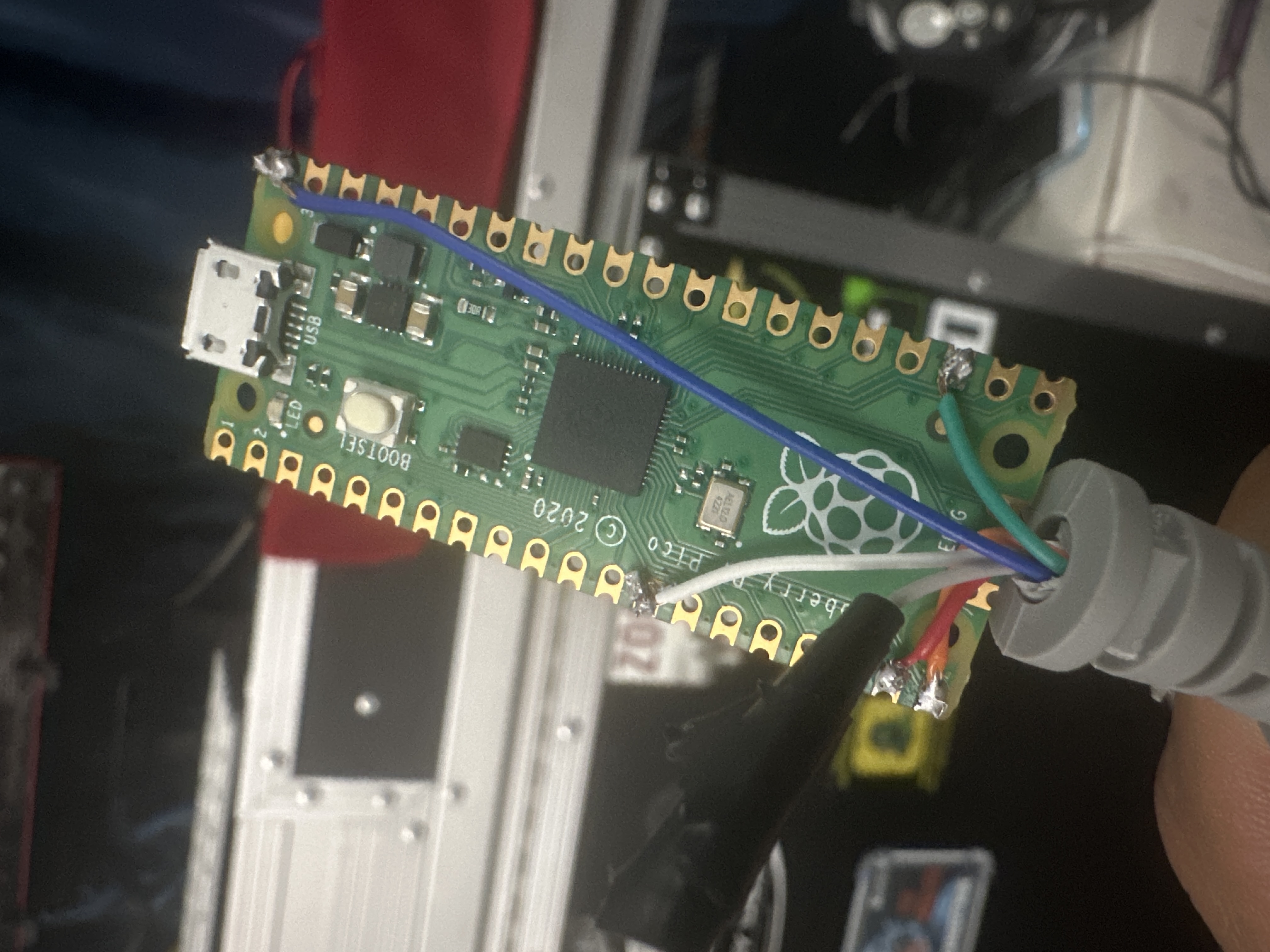

So this is how I connected everything but I don’t know what I did wrong . I used an extension cable. I burned the controller port fuse when I powered on . Am I supposed to ground the grey wire too. I mean the green and white wires are grounds too and they’re connected. Can anyone lead me in the right direction?
So this is how I connected everything but I don’t know what I did wrong . I used an extension cable. I burned the controller port fuse when I powered on . Am I supposed to ground the grey wire too. I mean the green and white wires are grounds too and they’re connected. Can anyone lead me in the right direction?

Developer
Posts: 2167

Re: USB4MAPLE adapter

Post by megavolt85 »

in Chinese extension cords the colors of the wires do not match the original, you need to check with a multimeter which wire goes where.
P.S. in my extension cord the green wire is VCC

shadow
Posts: 13
Dreamcast Games you play Online: not yet

Re: USB4MAPLE adapter

Post by lostinspace »

BeeWildered wrote: Mon Mar 17, 2025 11:57 am
Un_frog wrote: Mon Mar 17, 2025 9:57 am Can we get a dedicated arcade stick layout? I want to bring this to my fighting game locals but having L only on the L1 and L2 buttons doesn't work well for fighting games. How can I map L to R1?
I think you might be looking for this viewtopic.php?t=13058

or this https://github.com/mackieks/MaplePad?tab=readme-ov-file
Didn't know this could be done using only a raspeberry pi pico or a STM32F103C8T6, I am going to try that next time. ;)

shadow
Posts: 13
Dreamcast Games you play Online: not yet

Re: USB4MAPLE adapter

Post by lostinspace »


I did this recently. I tried to use everything that I already had to keep the budget down. I carved/shaped a wooden block and fitted a transparent plastic panel that covers prints ( art ,moves, instructions...). Inside, I have an old 4G memory stick + screen, an arduino microcontroller and a RP2040 ( Usb4Maple).

The nice thing is that it can be used on both Dreamcast and PC, works great. ( don't know if this falls into a another topic category, apologies )
Last edited by lostinspace on Tue Mar 18, 2025 5:40 pm, edited 1 time in total.
