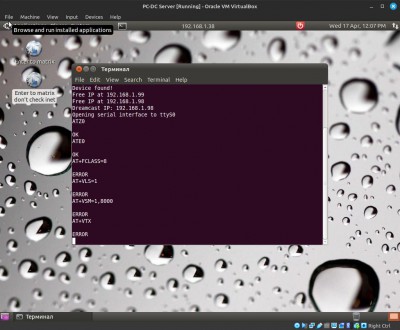

i was just testing the PC-DC server iso in virtualbox. I was thinking the Prolific serial to usb adapter was causing issues so I installed a serial port bracket on my motherboards com1 header and removed the Prolific serial to usb adapter. Now with the onboard serial port when loading up the PC-DC server .iso I'm getting these ERRORS in terminal when running the "Enter to matrix" script.

[megavolt85]

your modem does not support voice/fax transmission, apparently this is a regular data modem

[lilkuz2005]

your modem does not support voice/fax transmission, apparently this is a regular data modem

I know the modem doesn't support voice but I have read that other users like Scrivani, have been able to use this modem. I wonder if it has anything to do with the dip switched on the modem?

[Scrivani]

Yes, i have a custom script for that modem. It is data modem, but i found an analog tone usable function.

I send you more instructions tonight after my work time.

[Scrivani]

Custom Script > USRobotics USR5686 56K V.92 External

External Serial USRobotics 56K V.92 Modem - Analog Voice feature hack
>> This is the updated script

https://github.com/scrivanidc/dreampi_c ... berrypi.py


USB USRobotics USR5637 (white) **after firmware update**
>> This is the updated script

https://github.com/scrivanidc/dreampi_c ... berrypi.py

***KDDI/Sega Saturn games connection not implemented. Other features are aligned with 1.9 version ***


destination:
$home/dreampi/

backup dreampi.py file to dreampi_backup.py,
rename dreampi_usrobotics_external_serial_raspberrypi.py to dreampi.py

>> cp dreampi.py dreampi_backup.py
>> cp dreampi_usrobotics_external_serial_raspberrypi.py dreampi.py

restart the service or reboot the system:
>> sudo service dreampi restart

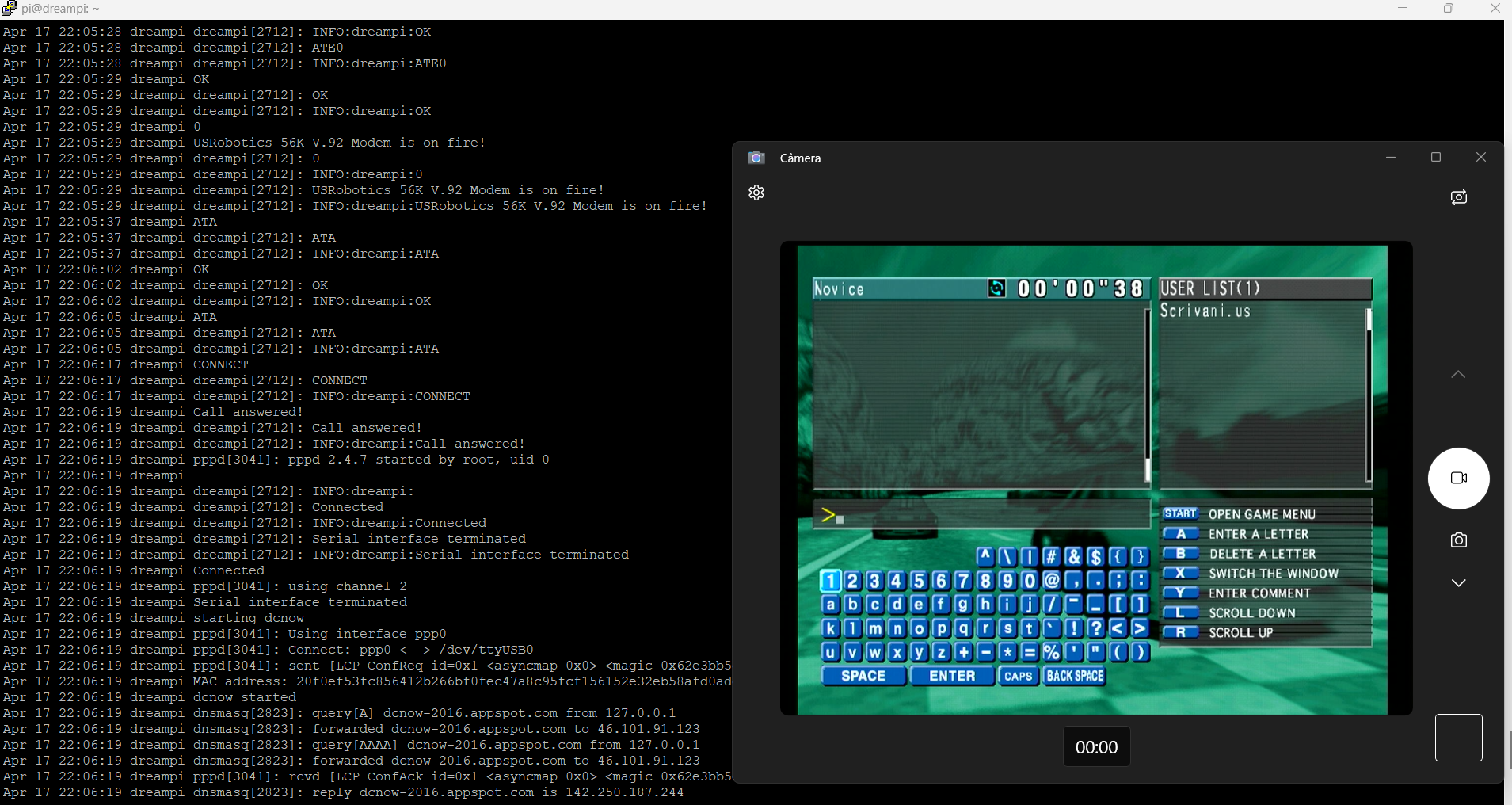

always follow the log during the process:
>> tail -f /var/log/syslog

When you see the first ATA command, wait 10 seconds and dial.

VID-20240417-WA0038.mp4

(16.16 MiB) Downloaded 306 times

[lilkuz2005]

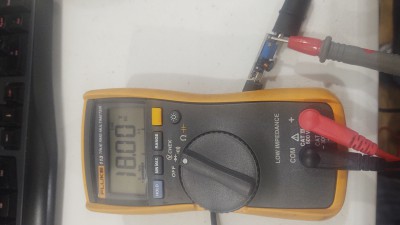

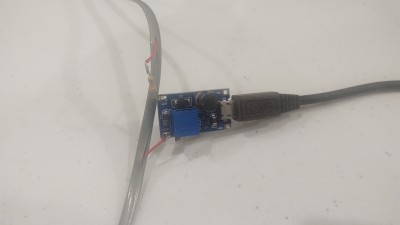

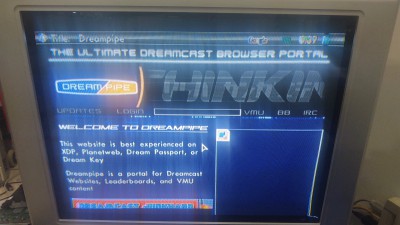

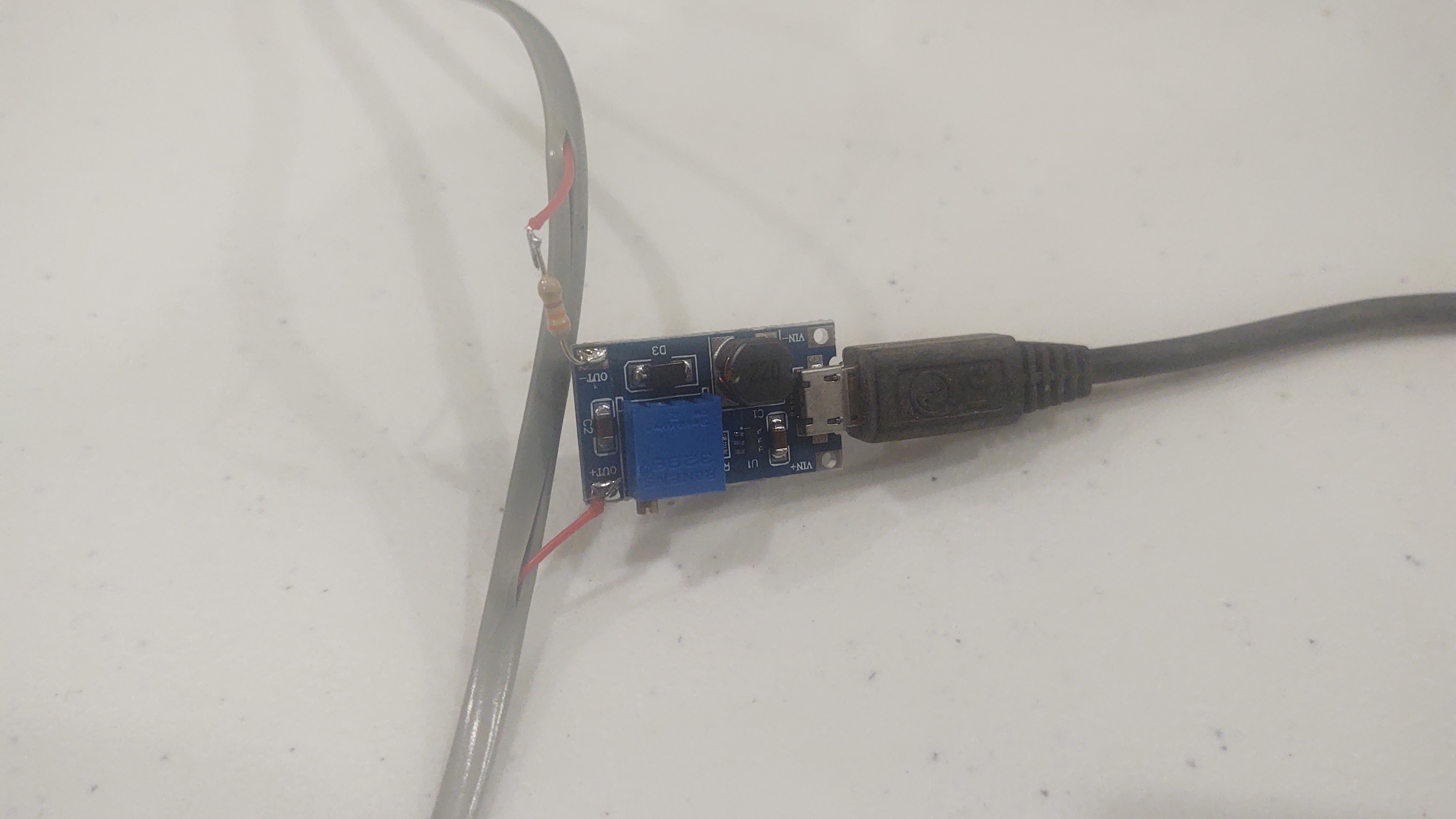

I wan't to say thanks to Scrivani for all his help getting my modem connected. For anyone that see's this post and is interested in setting up a U.S. Robotics 5685 serial modem, you will need a line voltage inducer. I am in the USA and I have only tested +18v. I am not sure if +9v will be enough. The DC to DC step up converter that I purchased for this project has a micro usb input and can step up from 2v-24v to 5v-28v. It also has a smd cap between the output pads. I didn't have a 0.47uf 50v cap but I did use a 330ohm resistor on the - output. You will also need a custom dreampi.py script that Scrivani has created that you will need to replace the stock script on the raspberry pi. I still have some more testing to do. I have a couple longer phone lines that I think are 50foot long and I want to build a box/enclosure for the step up converter. I also want to try to modify one of these step up converters inside the serial modem so I will have less wires and a cleaner install.

[Holsten]

Nice, good to know that it's still possible to save some money by using stuff that is more availiable
