USB4MAPLE adapter

[gatoh]

Hori DOA4 Arcade Stick 360

added

Is it correct?

ou shit, i'm archived debug version
usb4maple(test MyFlash F300, Viperv2Pro, Hori DOA4).7z

It works perfect with both Mayflash F300 and Viper v2 Pro.

thank you very much!!!

[megavolt85]

I want to add to the supported sticks list. What do I need to generate the log file?

you need any usb-uart
viewtopic.php?p=185399#p185399
viewtopic.php?p=185441#p185441

Are arcade sticks supposed to have alt modes?

no, only arcade stick mode

[sh4]

Hi, does this work now with latest firmware? Thanks.

[rpf16rj]

Hey @megavolt85, can add support for this PS2 to USB PS3/PC adapter? This one has single port:

Code: Select all

HID device address = 1, instance = 0 is mounted
HID Interface Protocol = None VID = 054C PID = 0268
HID has 1 reports
VID = 054c, PID = 0268
Protocol 0
HID receive desc report:
05 01 09 04 A1 01 A1 02 85 01 75 08 95 01 15 00
26 FF 00 81 03 75 01 95 0D 15 00 25 01 35 00 45
01 05 09 19 01 29 0D 81 02 75 01 95 03 06 00 FF
81 03 05 01 25 07 46 3B 01 75 04 95 01 65 14 09
39 81 42 65 00 75 01 95 0C 06 00 FF 81 03 15 00
26 FF 00 05 01 09 01 A1 00 75 08 95 04 15 00 15
00 15 00 35 00 35 00 46 FF 00 09 30 09 31 09 32
09 35 81 02 C0 05 01 75 08 95 27 09 01 81 02 75
08 95 30 09 01 91 02 75 08 95 30 09 01 B1 02 C0
A1 02 85 02 75 08 95 30 09 01 B1 02 C0 A1 02 85
EE 75 08 95 30 09 01 B1 02 C0 A1 02 85 FE 75 08
95 30 09 01 B1 02 C0 C0

Thanks.

[megavolt85]

Hi, does this work now with latest firmware? Thanks.

no, this connection method will not work on any firmware.

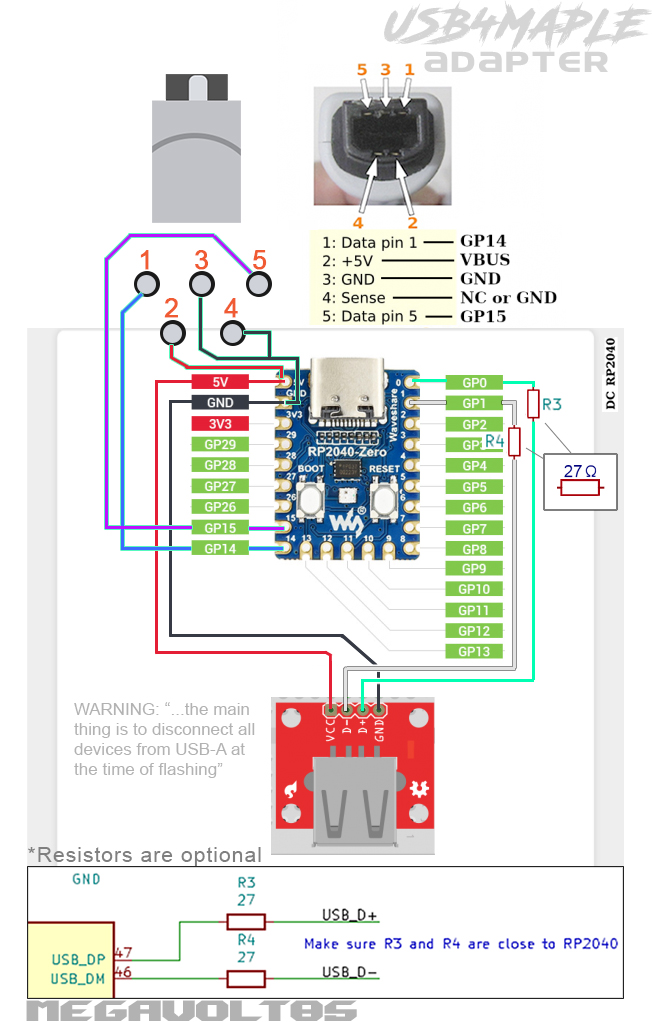

I use hardware USB, which means that the USB needs to be connected via an OTG adapter to a type-c connector.

Hey @megavolt85, can add support for this PS2 to USB PS3/PC adapter? This one has single port:

it's use Dualshock 3 VID and PID, if it doesn't work now, then I can't add support for it because the ID is already occupied by the DS3 controller

[maonaluva]

I tested another PowerA control. There's the LOG. If possible, invert the X and Y, A and B buttons, to match the position of the Dreamcast buttons. The other PowerA control ended up being in the inverted position.


PowerA Link Special Edition USB Controller for Nintendo Switch
https://www.amazon.com/Super-Mario-Cont ... _1_fkmr0_1

Code: Select all

Starting
HID device address = 1, instance = 0 is mounted
HID Interface Protocol = None VID = 20D6 PID = A711
HID has 1 reports
VID = 20d6, PID = a711
Protocol 0
HID receive desc report:
05 01 09 05 A1 01 15 00 25 01 35 00 45 01 75 01
95 0E 05 09 19 01 29 0E 81 02 95 02 81 01 05 01
25 07 46 3B 01 75 04 95 01 65 14 09 39 81 42 65
00 95 01 81 01 26 FF 00 46 FF 00 09 30 09 31 09
32 09 35 75 08 95 04 81 02 75 08 95 01 81 03 C0
00 00 0F 80 80 80 80 00

Left Stick UP: 00 00 0F 80 00 80 80 00
Left Stick DOWN: 00 00 0F 80 FF 80 80 00
Left Stick LEFT: 00 00 0F 00 80 80 80 00
Left Stick RIGHT: 00 00 0F FF 80 80 80 00

Right Stick UP: 00 00 0F 80 80 80 00 00
Right Stick DOWN: 00 00 0F 80 80 80 FF 00
Right Stick LEFT: 00 00 0F 80 80 00 80 00
Right Stick RIGHT: 00 00 0F 80 80 FF 80 00

d-pad up = 00 00 00 80 80 80 80 00
d-pad down = 00 00 04 80 80 80 80 00
d-pad left = 00 00 06 80 80 80 80 00
d-pad right = 00 00 02 80 80 80 80 00

Y = 01 00 0F 80 80 80 80 00
X = 08 00 0F 80 80 80 80 00
B = 02 00 0F 80 80 80 80 00
A = 04 00 0F 80 80 80 80 00

L = 10 00 0F 80 80 80 80 00
R = 20 00 0F 80 80 80 80 00
ZL = 40 00 0F 80 80 80 80 00
ZR = 80 00 0F 80 80 80 80 00

start = 00 02 0F 80 80 80 80 00
select = 00 01 0F 80 80 80 80 00

home = 00 10 0F 80 80 80 80 00

[megavolt85]

I just tested, the SNES30 had the X and Y inverted, and the A and B were also inverted.

fixed

I tested another PowerA control. There's the LOG.

looks the same as the regular version, added PID to the list, test it

added:
PS2 to USB single adapter with VID = 2563 PID = 0575 (hot key for change mode start+select)
GuliKit KingKong 2 Pro in Android/iOS Mode VID = 0079 PID = 181C (not tested)

usb4maple(12.05.24).7z

(50.16 KiB) Downloaded 96 times

[maonaluva]

one more, great for fighting games

8BitDo Mod Kit for Original MD Controller
https://shop.8bitdo.com/products/8bitdo ... controller

Code: Select all

Starting
HID device address = 1, instance = 0 is mounted
HID Interface Protocol = None VID = 2DC8 PID = 5001
HID has 1 reports
VID = 2dc8, PID = 5001
Protocol 0
HID receive desc report:
05 01 09 05 A1 01 15 00 25 01 35 00 45 01 75 01
95 0F 05 09 19 01 29 0F 81 02 95 01 81 01 05 01
25 07 46 3B 01 75 04 95 01 65 14 09 39 81 42 65
00 95 01 81 01 26 FF 00 46 FF 00 09 30 09 31 09
32 09 35 75 08 95 04 81 02 05 02 15 00 26 FF 00
09 C4 09 C5 95 02 75 08 81 02 05 08 09 43 15 00
26 FF 00 35 00 46 FF 00 75 08 95 02 91 82 09 44
91 82 09 45 91 82 09 46 91 82 C0
00 00 0F 7F 7F 7F 7F 00 00

d-pad up = 00 00 0F 7F 00 7F 7F 00 00
d-pad down = 00 00 0F 7F FF 7F 7F 00 00
d-pad left = 00 00 0F 00 7F 7F 7F 00 00
d-pad right = 00 00 0F FF 7F 7F 7F 00 00

X = 10 00 0F 7F 7F 7F 7F 00 00
Y = 08 00 0F 7F 7F 7F 7F 00 00
Z= 40 00 0F 7F 7F 7F 7F 00 00
A = 02 00 0F 7F 7F 7F 7F 00 00
B = 01 00 0F 7F 7F 7F 7F 00 00
C = 80 00 0F 7F 7F 7F 7F 00 00

MODE = 00 04 0F 7F 7F 7F 7F 00 00

start = 00 08 0F 80 80 80 80 00

[megavolt85]

8BitDo Mod Kit for Original MD Controller

test

usb4maple(8bitdo MDC mod kit test).7z

(50.25 KiB) Downloaded 82 times

[maonaluva]

8BitDo Mod Kit for Original MD Controller

test
usb4maple(8bitdo MDC mod kit test).7z

Thanks Megavolt, all working normally, I tested the PowerA ones too
