GDEmu clone issues

General Dreamcast discussion applies here. Before posting here please check the other forums in the Dreamcast section to see if your topic would fit better in those categories.
Forum rules
Please check the other forums in the Dreamcast section before posting here to see if your topic would fit better in those categories. Example: A new game/homebrew release would go in the New Releases/Homebrew/Emulation section: http://dreamcast-talk.com/forum/viewforum.php?f=5 or if you're having an issue with getting your Dreamcast to work or a game to boot it would go in the Support section: http://dreamcast-talk.com/forum/viewforum.php?f=42
User avatar
Xiden
Developer
Posts: 2363
Dreamcast Games you play Online: All the DC games!!

GDEmu clone issues

Post by Xiden »

If you have a clone Gdemu, you likely have a faulty or incorrect crystal on your g1 bus that needs to be replaced. Reference the following tweet for fix. This is partly why I am against chinese knock offs.

https://mobile.twitter.com/citrus3000ps ... 7803078658

Thanks to Citrispsi3000 for finding this issue.

https://www.mouser.com/ProductDetail/?q ... Ik0w%3d%3d - Crystal Replacement
Last edited by Xiden on Wed Dec 12, 2018 11:51 am, edited 1 time in total.

XVO
lithium
Posts: 36
Dreamcast Games you play Online: None atm

Re: GDEmu clone issues

Post by XVO »

So far no issues with my clone gdemu, but when it happens I now know what to do. Thank you.

2koolpa
photon blast
Posts: 112
Dreamcast Games you play Online: Quake 3

Re: GDEmu clone issues

Post by 2koolpa »

No issues with my clone either. Between that and vga, best thing you can get your Dreamcast.

User avatar
Xiden
Developer
Posts: 2363
Dreamcast Games you play Online: All the DC games!!

Re: GDEmu clone issues

Post by Xiden »

It may only be with some boards but figured I'd share anyways just in case :)

mrneo240
Rank 9
Posts: 955
Dreamcast Games you play Online: Available to play any game, working on gathering them.
Location: East coast, USA

Re: GDEmu clone issues

Post by mrneo240 »

All set over here
All set over here

User avatar
Xiden
Developer
Posts: 2363
Dreamcast Games you play Online: All the DC games!!

Re: GDEmu clone issues

Post by Xiden »

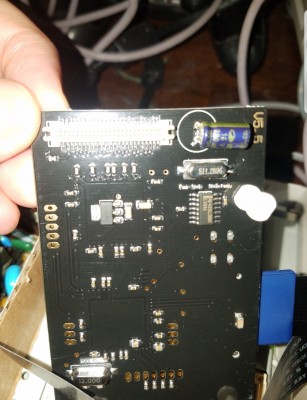

mrneo240 wrote:Screenshot_20181212-111924_Gallery.jpg
NIce!

Btw updated my Original post to include a link to replacement Crystals

User avatar
Anthony817
Shark Patrol
Posts: 4036
Location: Fort Worth, Texas

Re: GDEmu clone issues

Post by Anthony817 »

Thanks for the heads up. Checked mine I got in August and all is well.
