USB4MAPLE adapter

[Jaxel]

I connected three at the same time, keyboard, mouse, xbox360 rf module with LCD display and usb flash drive.
most likely it's time for you to replace fuse F1 on the controller board

Hmm... I replaced the fuse last month.

[megavolt85]

Hmm... I replaced the fuse last month.

which one did you put?

[Quiquonn]

Hmm... I replaced the fuse last month.

which one did you put?

I changed mine recently and I used this one

RXEF040 0.4A
https://es.aliexpress.com/item/10050086 ... pt=glo2esp

[megavolt85]

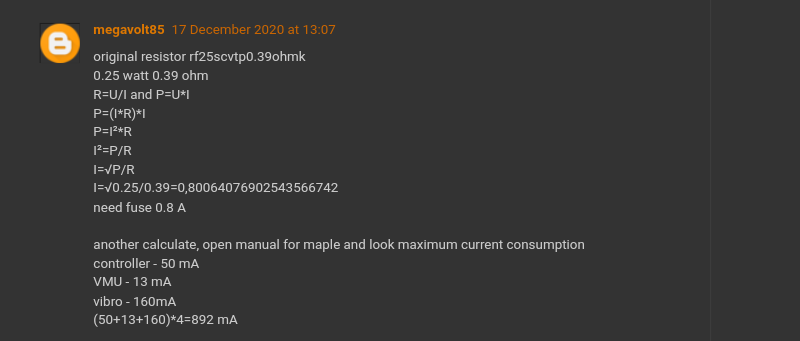

the native one is rated for 0.8A

[MoeFoh]

I learned this from @megavolt85 a while back. You could try a higher amperage resettable fuse or replace with the original spec of a 0.39 ohm, 1/4 watt resistor. The resettable fuse is not blowing, yes? I'm guessing going back to original design would fix this high current demand situation.

Also, if there is a third-party power supply involved, it may not be able to deliver the current requirement on the +5v side.

[Jaxel]

Hmm... I replaced the fuse last month.

which one did you put?

I bought this kit:
https://www.amazon.com/dp/B087D7WXKJ

[megavolt85]

I bought this kit:
https://www.amazon.com/dp/B087D7WXKJ

Unfortunately, the fuse rating is not indicated on the order page and it is not visible in the photo either.

[Jaxel]

[quote=Jaxel post_id=195647 time=1748302804
I bought this kit:
https://www.amazon.com/dp/B087D7WXKJ

Unfortunately, the fuse rating is not indicated on the order page and it is not visible in the photo either.
[/quote]

Can you link a fuse I should buy? Preferably on Amazon.

[megavolt85]

https://es.aliexpress.com/item/3256808512802322.html
select RXEF090 0.9A
i'm can't find on Amazon

[MoeFoh]

RXEF040 400mA Holding Current, 800mA Trip Current, Max Time to Trip 3.8 sec., 72v - this one is typically found in those kits.

RXEF090 900mA Holding Current, 1800mA Trip Current, Max Time to Trip 7.2 sec., 72v.

From Digikey:
