Making Dreamcast Serial Port Connector

Discuss Dreamcast related events and other Dreamcast websites here.
Post Reply
TeamXlink
Rank 9
Posts: 950

Making Dreamcast Serial Port Connector

Post by TeamXlink »

I'm trying to find out how to make a connector for the Dreamcast Serial port.

Does anyone know how too do this?

Thank you.
Top
User avatar
alex
lithium
Posts: 39
Location: Russia/Novosibirsk
Contact:
Contact alex

Re: Making Dreamcast Serial Port Connector

Post by alex »

guide coming soon on http://www.dc-swat.ru
Top
User avatar
Macabre
Feet of Fury
Posts: 572
Dreamcast Games you play Online: PSO, little quake, doom is cute.
Location: Marshall University, Huntington WV

Re: Making Dreamcast Serial Port Connector

Post by Macabre »

On one of my modded systems I strait up replaced the port with the plug from a vmu, only need 10 lines, vmu plug has 14. Looks awesome, hacked SD card reader inside a vmu plunged in the back of he system = awesome.
PSO Dreamcast BBA ftw @ Dreamcast-Talk.com
~ Macabre! Redria HUcast
~ Lust Purplenum RAcaseal
~Sega Trade List!~
vid's coming soon~
Top
User avatar
alex
lithium
Posts: 39
Location: Russia/Novosibirsk
Contact:
Contact alex

Re: Making Dreamcast Serial Port Connector

Post by alex »

My adapters :D
Top
User avatar
alex
lithium
Posts: 39
Location: Russia/Novosibirsk
Contact:
Contact alex

Re: Making Dreamcast Serial Port Connector

Post by alex »

Guide (sorry, only in russian)

http://www.dc-swat.ru/forum/thread-1539 ... l#pid19238
Top
TeamXlink
Rank 9
Posts: 950

Re: Making Dreamcast Serial Port Connector

Post by TeamXlink »

Thank you!
Top
User avatar
alex
lithium
Posts: 39
Location: Russia/Novosibirsk
Contact:
Contact alex

Re: Making Dreamcast Serial Port Connector

Post by alex »

Another way to build external SD card reader using as serial port connector AGP slot from PC motherboard.

http://www.dc-swat.ru/forum/thread-72-p ... l#pid19516
Top
User avatar
elmagicochrisg
Metallic
Posts: 888
Dreamcast Games you play Online: None for the moment I'm afraid... lol

Re: Making Dreamcast Serial Port Connector

Post by elmagicochrisg »

Nice, finally found decent schematics for the DC to PC cable on this Russian site. All the other ones I found didn't mention what the connections were on the Dreamcast serial port's side. Which made those schematics quite useless...

Still, those schematics are made with a MAX3222CPN chip, and not with a MAX3232CPE as in the original cables. Anybody know where I can find the schematics with the MAX3232CPE chip?...
Come, bow before your King!... Bow ya shits!...

Dreamcast DUX Limited Edition for sale (new and sealed)
Top
User avatar
Bob Dobbs
Sub Genius
Posts: 4412
Dreamcast Games you play Online: PSO, AFO, PBA, 4x4 Evo, IGP, Planet Ring and Max Pool
Location: USA
Contact:
Contact Bob Dobbs

Re: Making Dreamcast Serial Port Connector

Post by Bob Dobbs »

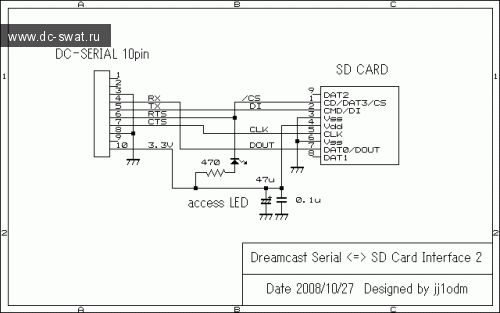

Schematic...courtesy of our friends at DC-SWAT.ru).
USB to Serial
USB to Serial
Last edited by Bob Dobbs on Fri Oct 13, 2017 11:05 pm, edited 1 time in total.
Regards,
Bob Dobbs
Top
User avatar
Xiden
Developer
Posts: 2333
Dreamcast Games you play Online: All the DC games!!

Re: Making Dreamcast Serial Port Connector

Post by Xiden »

someone used a hdmi to make on too i think
Top
